High-Quality

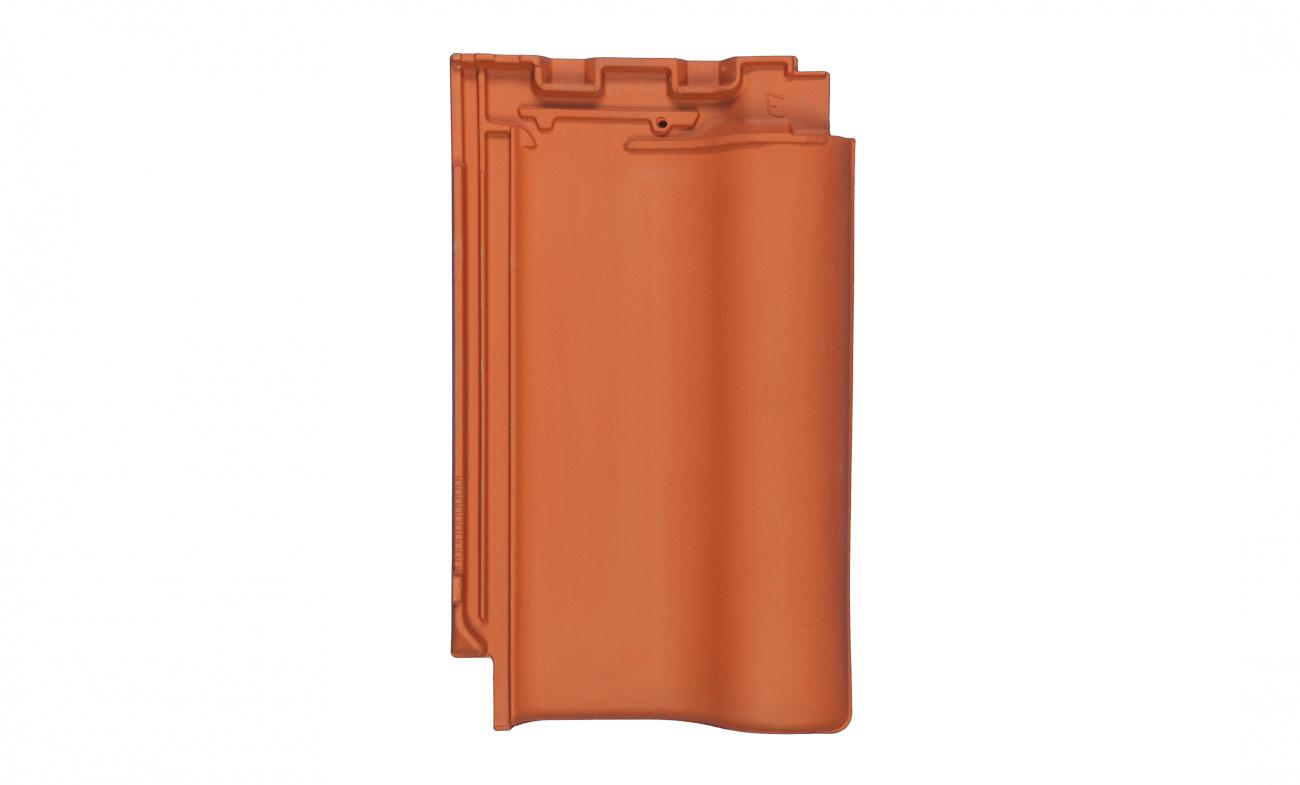

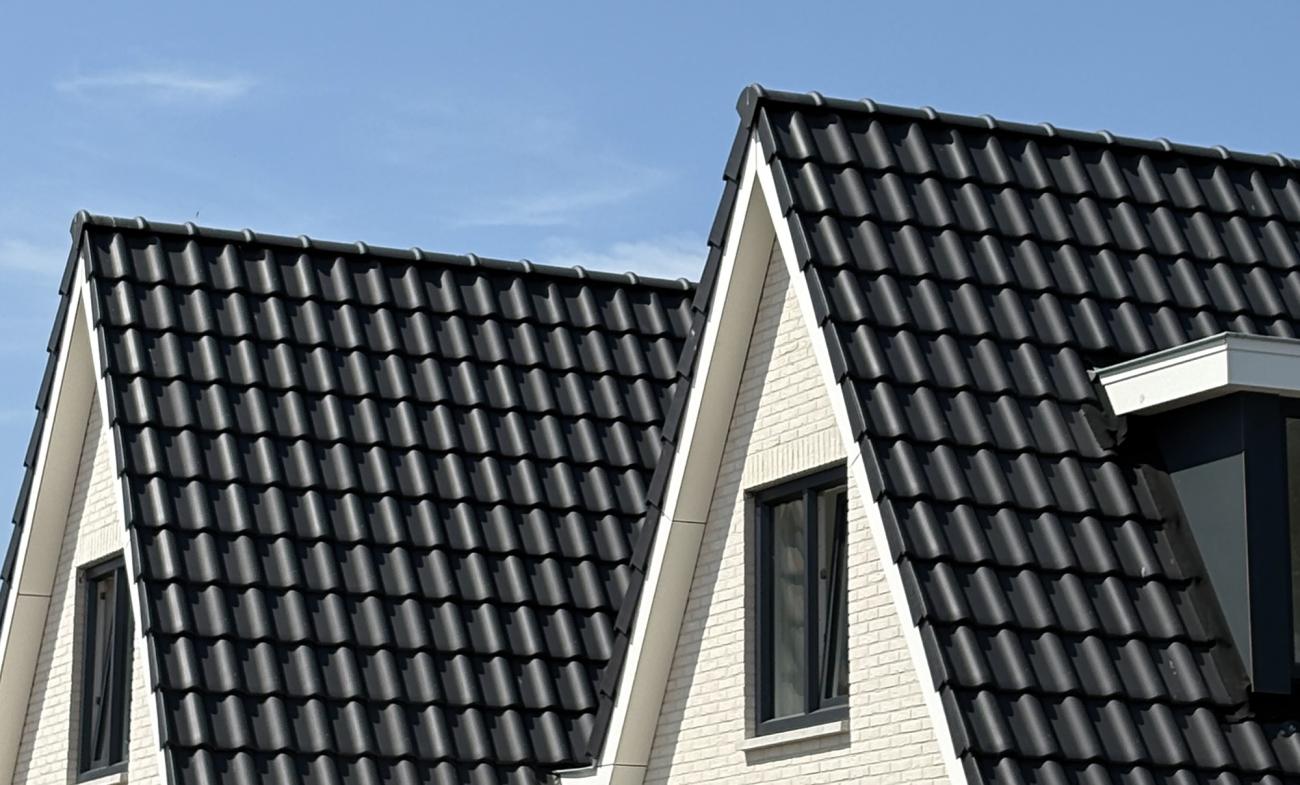

The F10 Pro tiles are made of 100% Westerwald clay in ceramic quality. Due to their low water absorption (<3%), they are extremely frost resistant, strong and impress over the long term with an extraordinary aesthetic rooftop pattern with significantly lower lichen growth.

Economical Coverage
The Size 10 format delivers not only faster installation times but also significant savings on the supporting substructure. With a requirement of just 9.6–10.4 tiles per m2, it offers outstanding material efficiency and cost-effectiveness, making it a highly economical roofing solution.

Like all Crest Nelskamp tiles the F10 PRO clay roofing tile is available with a wide range of fittings.

• Technologically advanced
• Minimum roof pitch 10°
• Long term durability
• Eco friendly
• Low maintenance

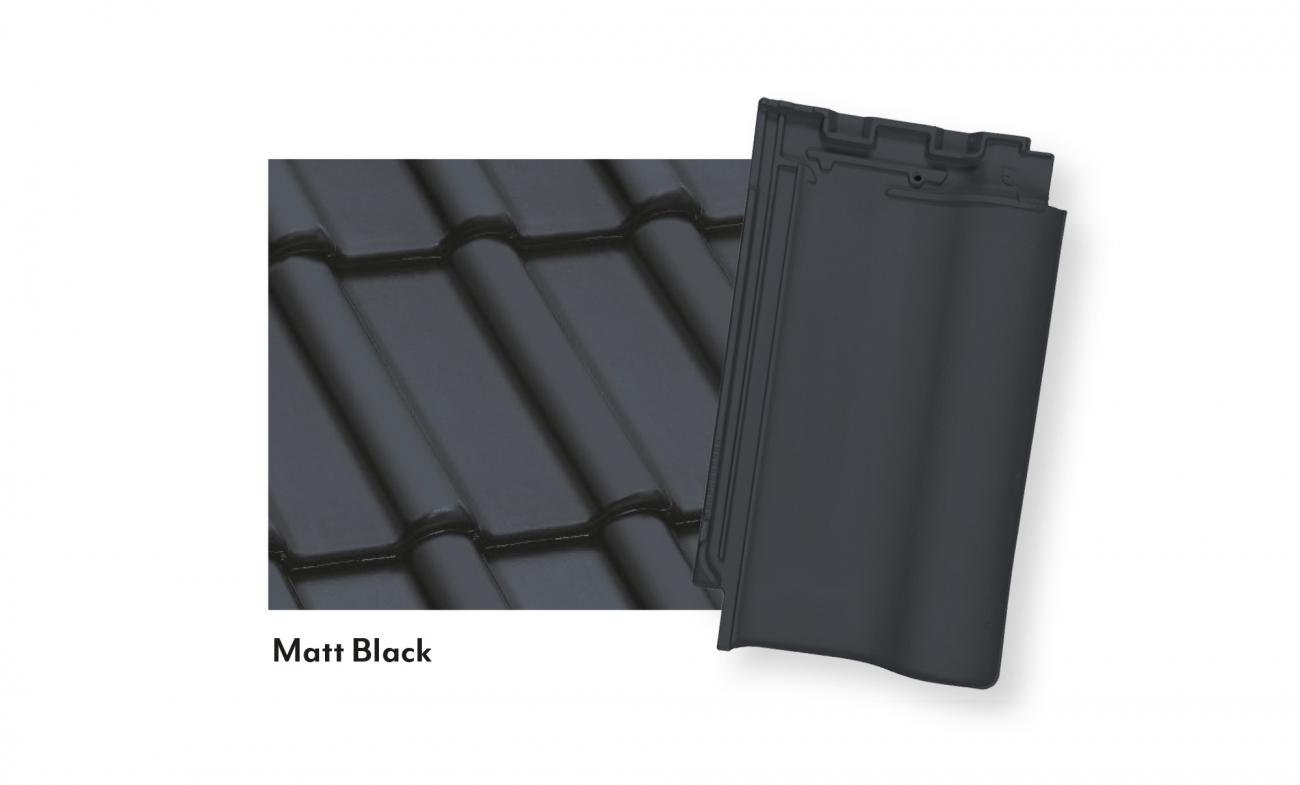

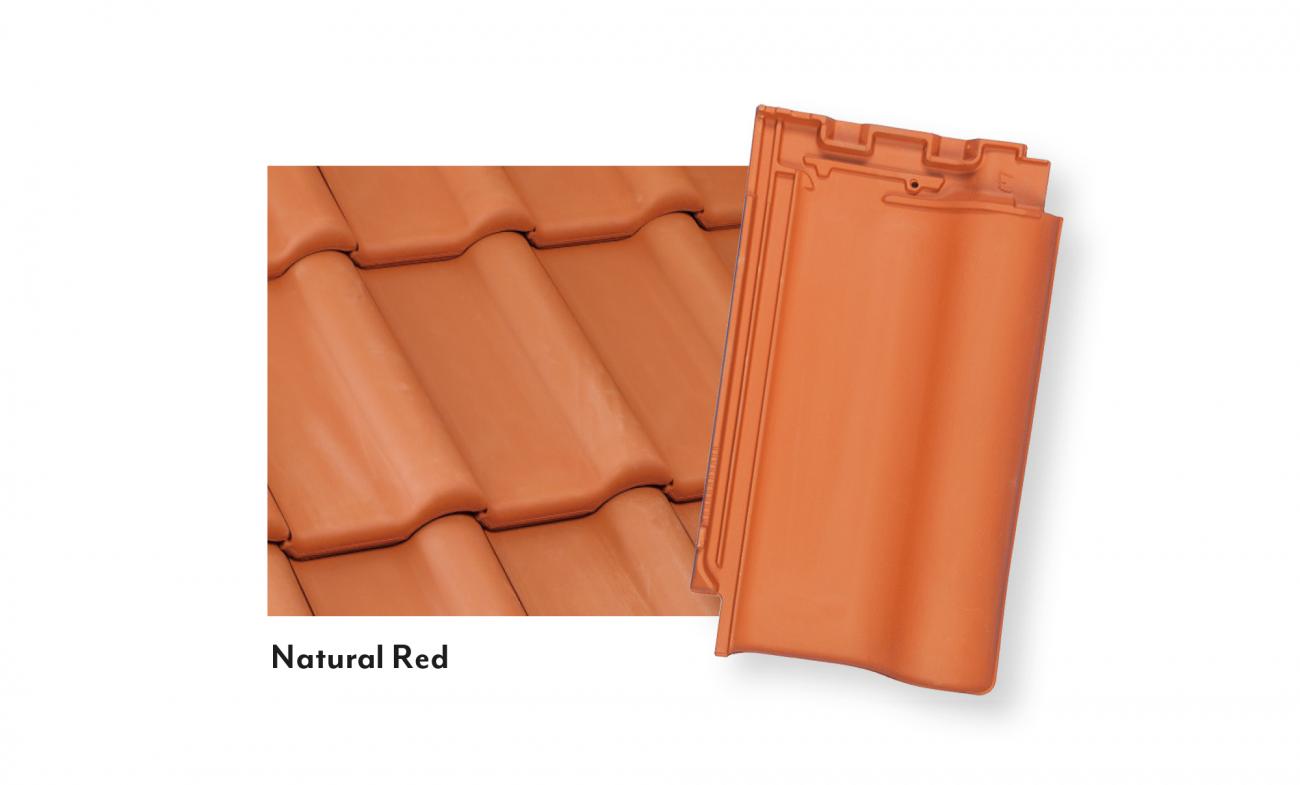

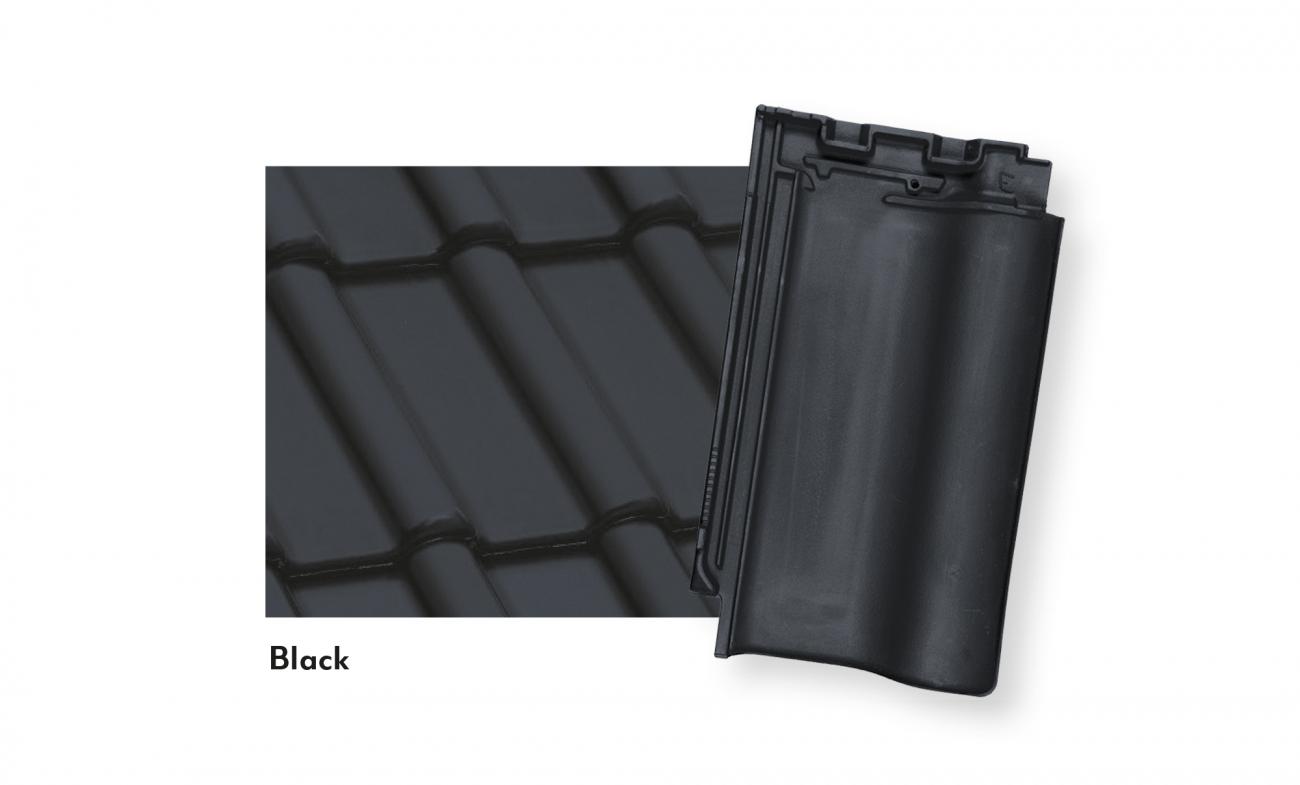

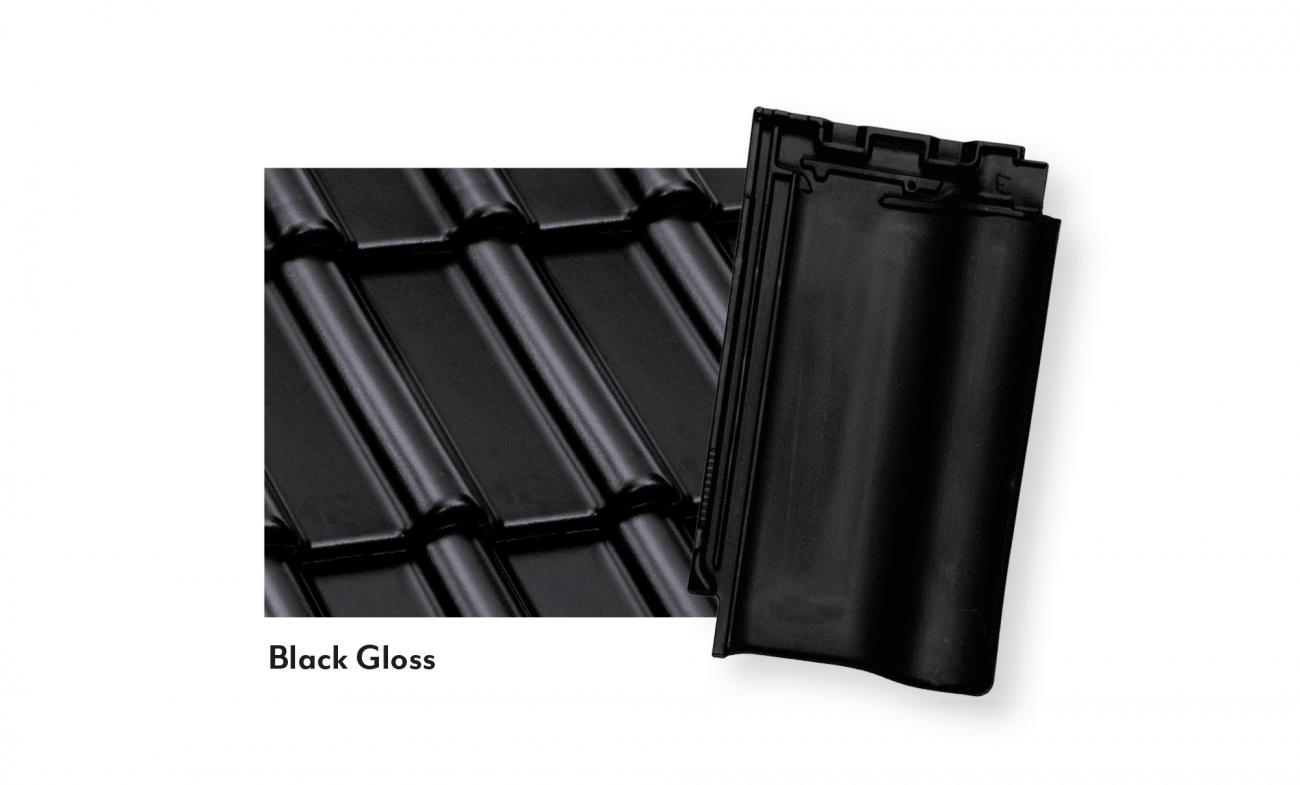

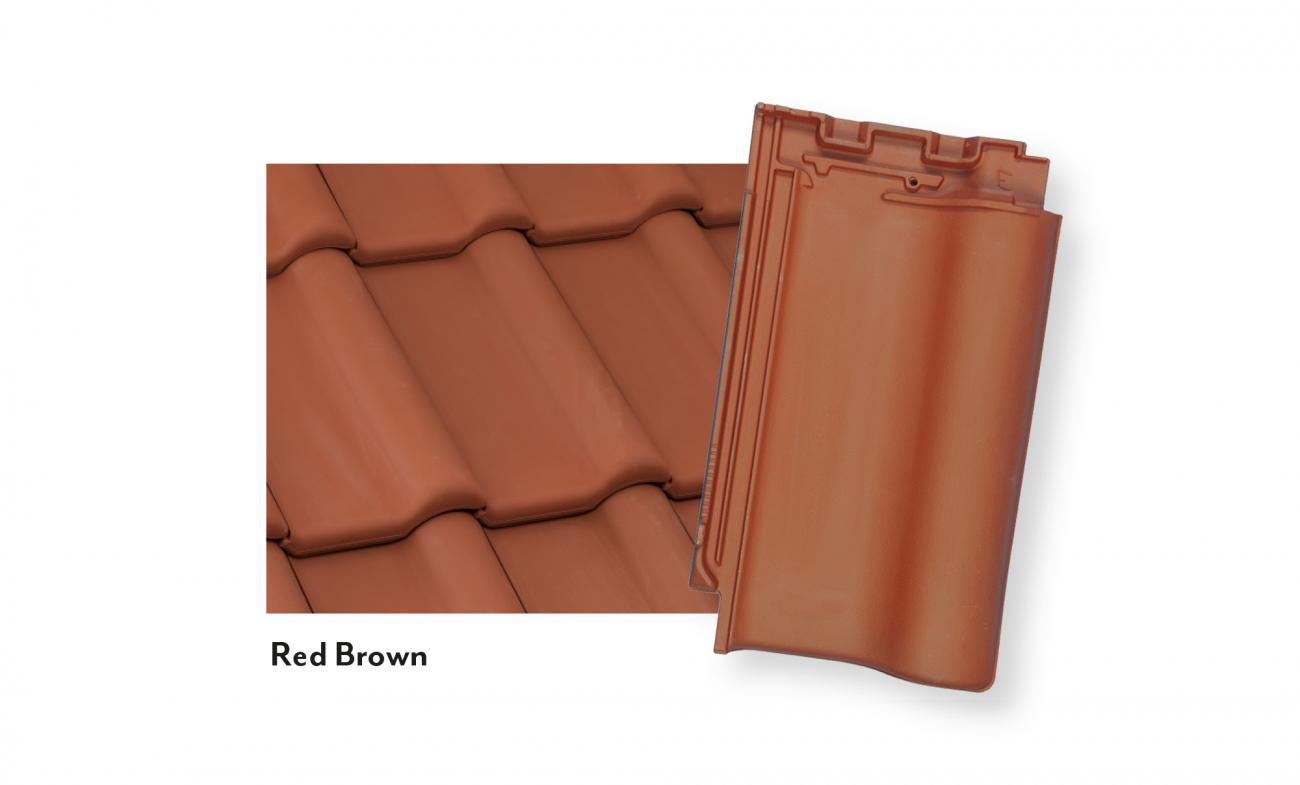

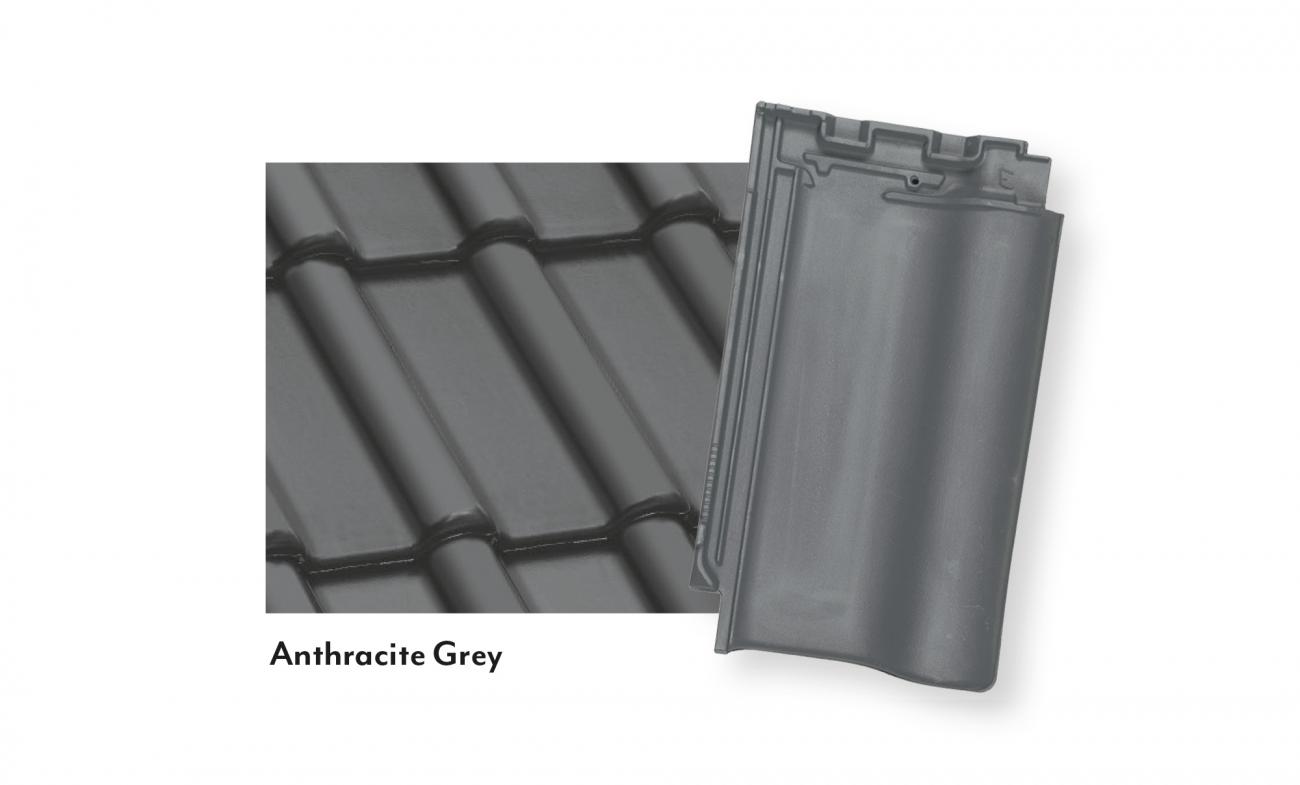

• Wide range of colours & fittings

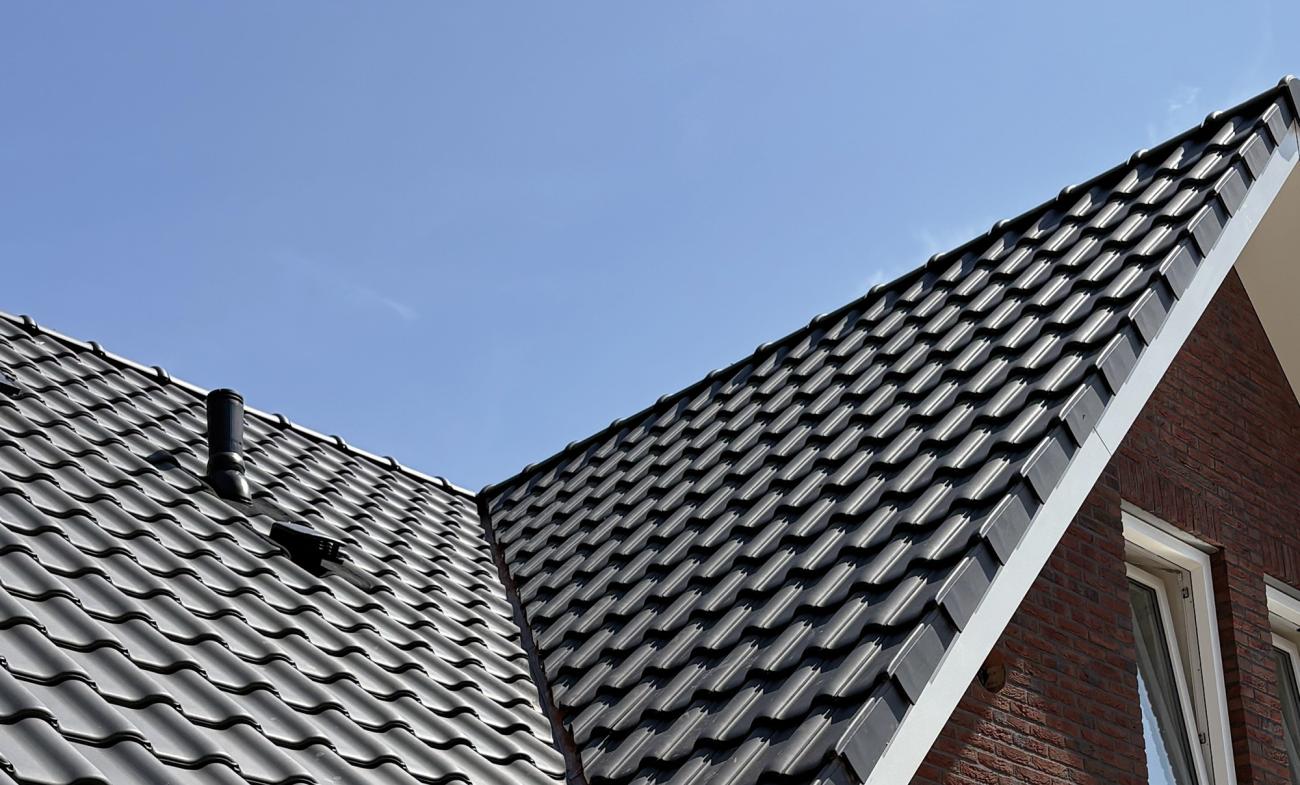

• Aesthetic rooftop pattern
• Quick, easy & secure installation

The F10 Pro is the perfect interlocking clay pantile for low-pitch roofs, we recommend that these fixing practices are followed:
Low roof pitches 17 ˚- 10˚

• Use appropriate air and vapour permeable underlay, which does not require secondary roof ventilation.
• Lay the roof underlay to the manufacturer’s instructions.
• Lay F10 Pro tiles straight bond.
• Headlap minimum 100mm.
• All tiles are to be clipped with purpose-made tile clips, reference 409/223
• Roof perimeters including around roof windows must be securely fixed to BS 5534

All areas around the roof perimeter and abutments must be properly finished as well as any areas around any ‘velux type’ windows. (These are the areas where potential problems are likely to occur on a low roof pitch.)
